The Nocpix MATE Ultra is the first civilian thermal clip-on I have tested with the image quality to make serious long-range shooting through a conventional day scope realistic. We pushed it all the way to 1,000 yards in complete darkness.
Watch the full Nocpix MATE Ultra field test video
Table of contents
- Why the Nocpix MATE Ultra Changes Long-Range Thermal
- We Took the Nocpix MATE Ultra to 1,000 Yards
- MATE Ultra Laser Rangefinder: Real-World Results
- Nocpix MATE Ultra Specifications That Drive the Image
- What Is a Thermal Clip-On and Why Use One?
- Does the Nocpix MATE Ultra Change Your Zero?
- How Much Magnification Can the MATE Ultra Really Handle?
- Can a Thermal Clip-On Really Make Hits at 1,000 Yards?
- MATE Ultra vs. Dedicated Thermal: Which Setup Wins?
- Does the MATE Ultra Work in Total Darkness?
- Can a Thermal Clip-On See Through Brush?
- Nocpix MATE Ultra Pros and Cons After Long-Range Testing
- Nocpix MATE Ultra Verdict: This Clip-On Has Real Reach
- Related Reads from GunsAmerica Digest
Why the Nocpix MATE Ultra Changes Long-Range Thermal
Most civilian thermal clip-ons have forced shooters to accept a compromise. They may work well on an AR at modest distances, but image quality often falls apart when magnification increases or targets get small. The MATE Ultra is different.
It uses a 1280×1024, 12-micron thermal sensor, a 60mm f/1.0 objective lens, a 60 Hz refresh rate, and a sensitivity rating of 15 mK or less. Nocpix lists a 3,390-yard detection range and equips the unit with an integrated 1,300-yard laser rangefinder and ballistic calculation.
More importantly, it is a true clip-on. The rifle remains zeroed through the conventional day scope. Once the thermal image is collimated to that optic, the MATE Ultra can be removed and reinstalled without rebuilding the rifle around a dedicated thermal sight.
My unit arrived remarkably close to alignment. At 100 yards, it required no windage correction and only a small elevation adjustment. The quick-detach mount repeatedly returned to zero during several months of testing.
I did not approach this test without a baseline. I have used many different civilian clip-ons, including competing Nocpix, iRay, Guide, Berring, and SIG units, and have also spent time behind military clip-ons costing over $100,000.
The MATE Ultra cannot show bullet trace like an exotic cooled military system, but it gets closer to that class of performance than any comparably accessible civilian clip-on I have tested.
We Took the Nocpix MATE Ultra to 1,000 Yards
The 473-yard target was almost disappointingly easy. We hit it while dialing the day scope and again by holding with the reticle.
At 1,000 yards, wind became the real problem because it’s hard to judge in the dark. Impacts off the edge of the steel were easy to see, and corrections produced consecutive hits. The image was usable even at 20X, but the pixelation and narrow field of view weren’t great. In practical terms, the better balance of image quality and target size was around 10X to 12X.
The video matters because recorded thermal footage rarely looks as good as the image the shooter sees. We recorded both through the MATE Ultra and through the day scope using a ScopeMate so viewers can compare the raw thermal image with the actual sight picture and reticle.
There are limits. A premium dedicated thermal such as the Nocpix RICO S75R or ACE A60R provides a better viewing experience because the image is not passing through another optic. Those can’t be dialed like a day scope and the user is at the mercy of the internal ballistics and internal rangefinder.
MATE Ultra Laser Rangefinder: Real-World Results
The MATE Ultra’s internal rangefinder also worked reliably on targets in roughly the 400-to-600-yard range during this test, but it would not consistently return a reading from the 1,000-yard steel. That does not make the rangefinder useless, but buyers should not assume the maximum advertised range will be dependable against every target under field conditions.
I used a Maztech 15k mounted on the day scope for ranging and for ballistic data.
Still, that misses the point of this optic. The MATE Ultra lets a shooter keep a familiar rifle, familiar ammunition, familiar turrets, and a familiar reticle, then convert that rifle from daylight precision use to serious nighttime capability in seconds.
For the complete field test, zeroing method, menu demonstration, recorded image comparison, long-range detection footage, and actual hits at 473 and 1,000 yards, watch the full video.
Learn more by visiting Nocpix USA.
Nocpix MATE Ultra Specifications That Drive the Image
| Model | Nocpix MATE Ultra |
|---|---|
| Thermal Sensor | 1280×1024 |
| Pixel Pitch | 12-micron |
| Objective Lens | 60mm f/1.0 |
| Refresh Rate | 60 Hz |
| Sensitivity | 15 mK or less |
| Listed Detection Range | 3,390-yard |
| Integrated Laser Rangefinder | 1,300-yard |

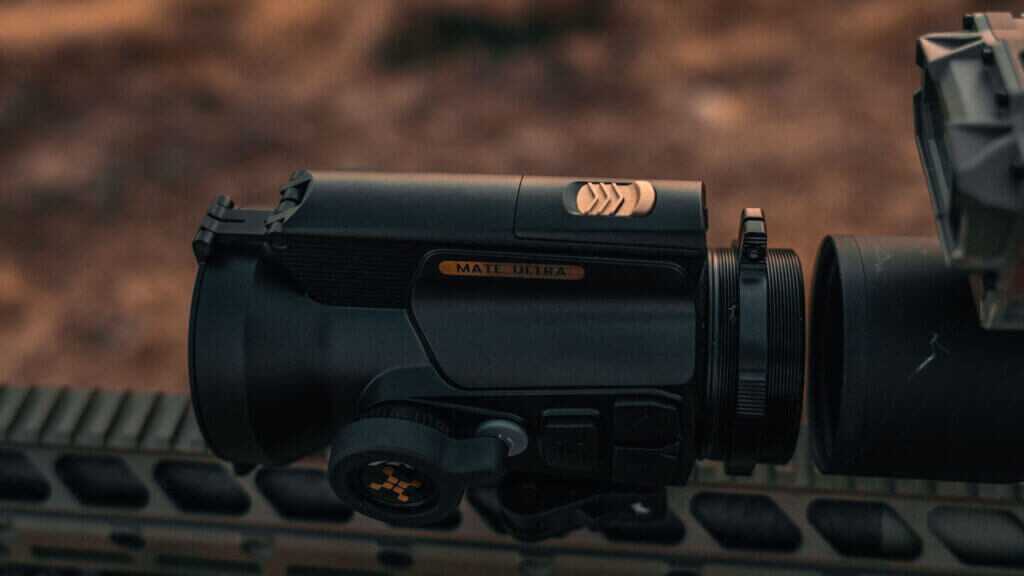

| Battery | Single 18650 rechargeable battery |
| Included Batteries | Four |
What Is a Thermal Clip-On and Why Use One?
A thermal clip-on mounts in front of a conventional riflescope and supplies the thermal image while the shooter continues aiming with the day scope’s reticle. It allows one rifle and optic setup to serve in both daylight and darkness.
Does the Nocpix MATE Ultra Change Your Zero?
A properly mounted and collimated thermal clip-on should preserve the day optic’s zero. The clip-on shifts its displayed image to match the rifle’s established point of impact. Mount quality, ammunition consistency, and correct setup still matter.
That was also one of the strongest practical points of the MATE Ultra during this test. My unit required no windage correction at 100 yards and only a small elevation adjustment, while the quick-detach mount repeatedly returned to zero during several months of testing.
How Much Magnification Can the MATE Ultra Really Handle?
That depends on sensor resolution and optical design. With the Nocpix MATE Ultra, the cleanest image was at low magnification, while 10X to 12X offered a useful balance for long-range shooting. Twenty power remained usable, but image pixelation increased.
Can a Thermal Clip-On Really Make Hits at 1,000 Yards?
Yes, but not with every thermal clip-on. Many common consumer models are designed for shorter-range use and begin losing the image detail needed for precise aiming beyond roughly 300 to 400 yards.
Reaching 1,000 yards requires a capable rifle, accurate ballistic data, a clearly visible target, favorable conditions, and a high-resolution thermal with enough image quality to remain usable through a magnified day scope. The Nocpix MATE Ultra uses a 1280×1024 sensor and premium internal components that preserve substantially more detail at higher magnification than most consumer clip-ons.
During our test, the MATE Ultra produced repeated hits on unheated steel at 1,000 yards in complete darkness. So yes, shooting that far with a thermal clip-on is possible, but only with equipment built for that level of performance.
Seeing a heat signature at 1,000 yards does not necessarily mean it can be safely identified or engaged. Detection, recognition, identification, and precise shot placement are separate standards.
MATE Ultra vs. Dedicated Thermal: Which Setup Wins?
Not universally. A dedicated thermal usually provides the best self-contained image, eyepiece, and controls. A clip-on is better for shooters who want to retain their existing day optic, reticle, rifle setup, and conventional shooting process.
That tradeoff is central to the MATE Ultra. A premium dedicated thermal can provide a better pure viewing experience, but the clip-on keeps the shooter’s familiar turrets, reticle, daytime zero, rifle, and ammunition in the equation.
Does the MATE Ultra Work in Total Darkness?
Yes. Thermal imaging detects differences in heat rather than visible light, so moonlight and artificial illumination are not required. Weather, humidity, target temperature, and background temperature can still affect image contrast.
During this test, the MATE Ultra produced repeated hits on unheated steel at 1,000 yards in complete darkness, which is a much harder standard than simply detecting a distant heat source.
Can a Thermal Clip-On See Through Brush?
A thermal can sometimes detect portions of a warm animal through gaps in grass or light vegetation, but it cannot see through solid objects or dense cover. A visible heat signature is not necessarily enough for positive identification or a safe shot.
Nocpix MATE Ultra Pros and Cons After Long-Range Testing
- Pros: Exceptional image quality for a civilian clip-on, 1280×1024 thermal sensor, usable image even at 20X, excellent practical balance around 10X to 12X, preserves the conventional day scope and reticle, quick-detach mount repeatedly returned to zero, integrated laser rangefinder and ballistic calculation, and demonstrated hits at 473 and 1,000 yards.
- Cons: Image quality and field of view deteriorate as day-scope magnification climbs, a premium dedicated thermal can provide a better viewing experience, and the internal rangefinder would not consistently return a reading from the 1,000-yard steel during testing.
Nocpix MATE Ultra Verdict: This Clip-On Has Real Reach
The point of the MATE Ultra is not that it replaces every dedicated thermal. It doesn’t. The point is that it gives a shooter serious nighttime capability without throwing away the rifle, day optic, reticle, turrets, ammunition, and shooting process they already know.
That is what separated it from the civilian clip-ons I have used before. The 473-yard target was almost disappointingly easy, the 1,000-yard target was legitimately workable, and the image retained enough detail through meaningful day-scope magnification to make long-range shooting practical rather than theoretical.
The MATE Ultra cannot show bullet trace like an exotic cooled military system, and its integrated rangefinder did not give me dependable readings on the 1,000-yard steel. But for a civilian thermal clip-on that can be mounted ahead of a conventional precision optic, removed, reinstalled, and pushed to four-digit distances in darkness, it gets closer to that high-end experience than any comparably accessible civilian clip-on I have tested.
