A Must-Have! Dark 30’s Roof-Mounted Thermal — SHOT Show 2025

Rugged, Compact, and Ready for Action

The Dark 30 Defiance 640 PTZ thermal camera combines portability, durability, and ease of installation to meet the needs of vehicle-mounted applications. Featuring a 640 x 480 thermal sensor with a 17μm pixel pitch and <30mK sensitivity, this compact system delivers sharp thermal imaging. Its 30mm F/1.0 Germanium lens strikes a balance between magnification and field-of-view, providing an ideal perspective for long-range observation.

With multiple mounting options and an included high-definition display, the Defiance 640 PTZ offers a true “turn-key” solution for those requiring a reliable vehicle-mounted thermal camera.

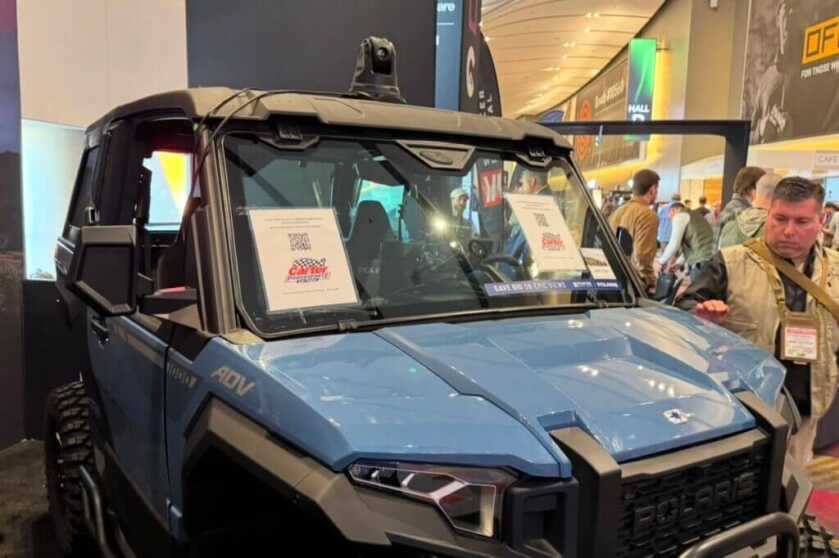

Straightforward Installation

The Defiance 640 PTZ is designed for quick and flexible installation on various vehicles. The package includes suction cups, 100lb magnets, a 2-inch riser, and permanent mounting bolts, giving users the freedom to choose the best setup for their needs. Whether for temporary or permanent use, installation is designed to be simple and secure.

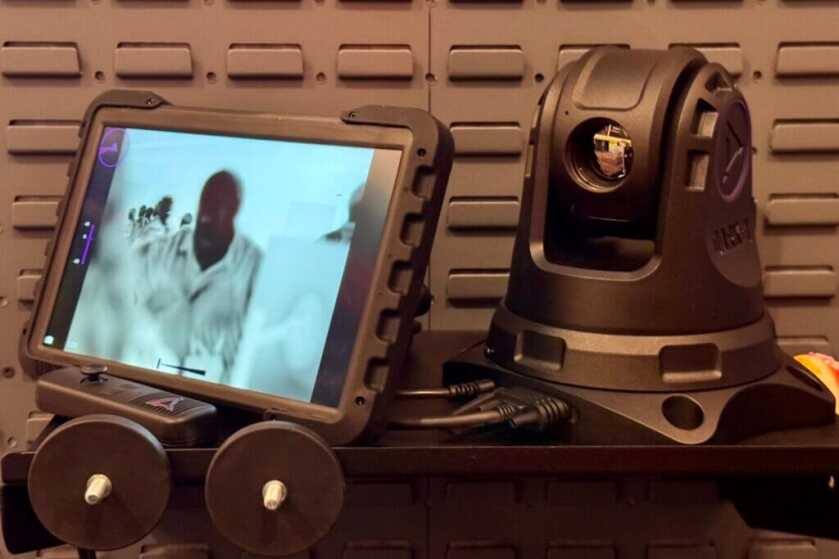

High-Definition Visuals

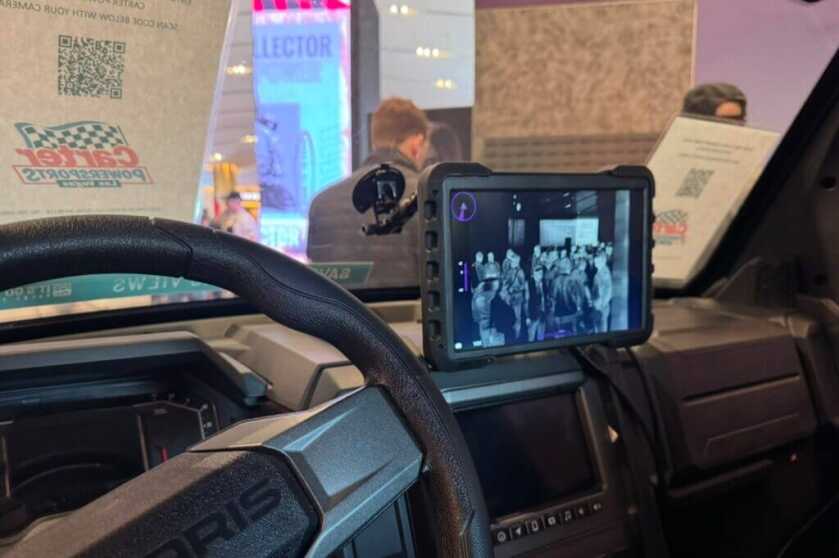

This system comes equipped with a tablet with a 10.1-inch HD LCD display with a resolution of 1920 x 1200, ensuring crisp and detailed visuals. The direct HDMI connection between the camera and the display ensures low-latency imaging, allowing users to make real-time decisions without delays.

I have personally had issues with other wireless roof-mounted thermals, so a wired option is much appreciated.

Advanced Features for Enhanced Control

Operating the Defiance 640 PTZ is simple, thanks to its wireless remote control and mobile app compatibility. Key features include:

• Variable speed pan-tilt-zoom: Effortlessly adjust the camera’s positioning.
• Thermal imaging palettes: Switch between white hot, black hot, rainbow, magenta, and green hot to suit your environment.
• 360° continuous panning: Eliminate blind spots and maintain complete situational awareness.
• Return-to-home function: Quickly reset the camera to its default position.
• Digital zoom: Magnify targets with up to 8x zoom.
• Sleep mode: Conserve power during downtime.

The system’s weather-resistant aluminum alloy housing (rated IP66) ensures durability in challenging environments.

Total Flexibility with Mobile App Integration

The Dark 30 app, compatible with iOS and Android, enhances the camera’s versatility. Control the camera remotely, capture footage, or adjust settings directly from your smartphone or tablet.

This feature is particularly useful for hunters and outdoorsmen who need to stay focused while keeping a close eye on their surroundings.

Built to Last

The Defiance 640 PTZ is backed by a 5-year warranty, reflecting Dark 30’s confidence in its craftsmanship. Sellmark’s established reputation for customer service ensures support when needed, so users can rely on this device for years.

Primary Specifications

• Sensor: 640 x 480, 17μm, <30mK
• Lens: 30mm F/1.0 Germanium
• Field of View: 20°
• Detection Range: 1250 yards
• Display: 10.1” HD LCD, 1920 x 1200
• Zoom: 1.0 – 8.0x
• Panning: Continuous 360°
• Weather Resistance: IP66
• Mounting Options: Suction cups, magnets, bolts
• Power: 12V DC adapter

What’s in the Box

• Dark 30 Defiance 640 PTZ
• 10.1” Display
• Wireless Remote
• Mounting Kit (Magnets, Suction Cups, Permanent Hardware)
• 2” Riser
• Cables
• Waterproof Carry Case
• Owner’s Manual

Versatility in the Field

Whether you’re looking for wild pigs, monitoring movement, or conducting surveillance, the Dark 30 Defiance 640 PTZ is equipped to handle a variety of scenarios. Its combination of thermal imaging performance, user-friendly controls, and rugged build makes it a seemingly reliable tool for outdoor enthusiasts and professionals alike.

Currently, this vehicle-mounted thermal is available with an MSRP of $6,499.97. Stay tuned as we aim to get one in for a full review down the road!
