Presenting the latest innovation from Vortex Optics – the Defender-XL red dot pistol sight. This cutting-edge sight boasts an array of features designed to enhance performance, featuring an exceptionally large window, motion activation, and a DeltaPoint Pro footprint. Engineered for speed, the Defender-XL excels in competitive pistol shooting, but its versatility also makes it an excellent choice for rifles and shotguns.
Table of contents
With a rugged 7075 aluminum body utilizing a textured Fast-Rack front face for easy slide-racking off any surface to a convenient top mount battery for hassle-free changes without re-zeroing, it’s a serious contender in the world of red dots.
Vortex Defender-XL Specifications:
- Dot Size: 5 MOA, 8 MOA
- Battery Type: CR2032
- Battery Life: 25,000 hours
- Illumination Settings: 12 Settings (10 Daylight, 2NV)
- Eye Relief: Unlimited
- Magnification: 1x
- Footprint: DeltaPoint Pro
- Adjustment Graduation: 1 MOA
- Travel per Rotation: 25 MOA
- Total Elevation Adjustment: 120 MOA
- Total Windage Adjustment: 115 MOA
- Parallax Setting: Parallax Free
- Length/Width/Height: 2.0″/1.4″/1.4″
- Weight (with battery): 1.9 oz
Defender-XL Out of the Box

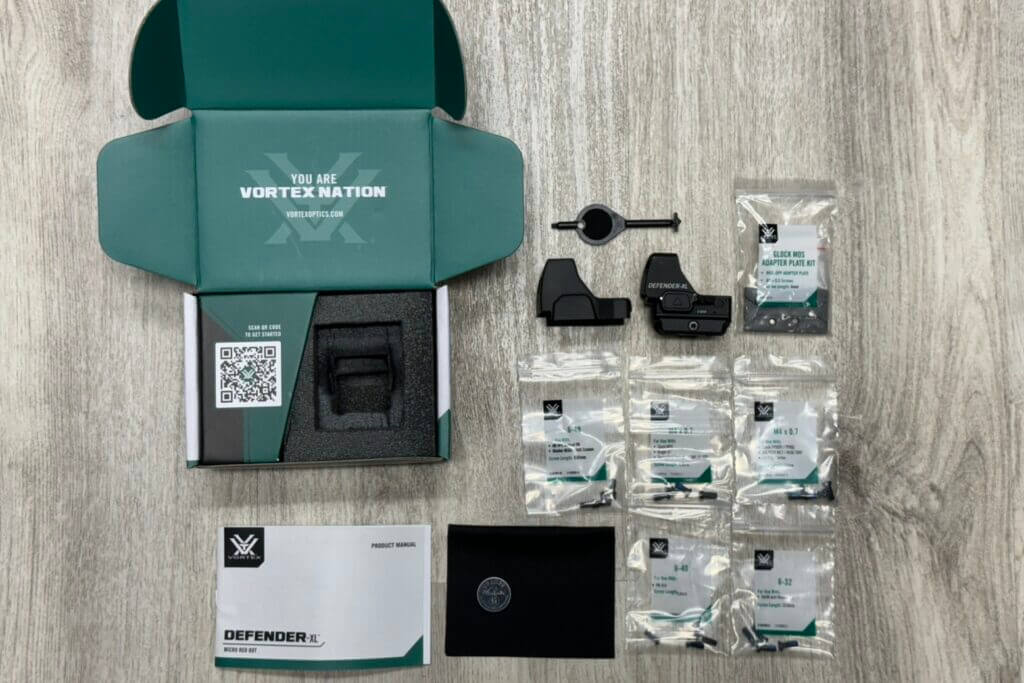

The Defender-XL arrives straight from the factory, fully equipped with nearly everything you might need. Included in the package are a Picatinny mount, a Glock MOS adapter plate, a lens cloth, a custom tool, a CR2032 battery, and a protective cover. Additionally, Vortex provides a variety of fasteners, allowing this red dot to be mounted on most Leupold DPP optic-cut pistols available on the market. Each fastener bag is conveniently labeled, simplifying the process of finding the right set for your specific firearm.

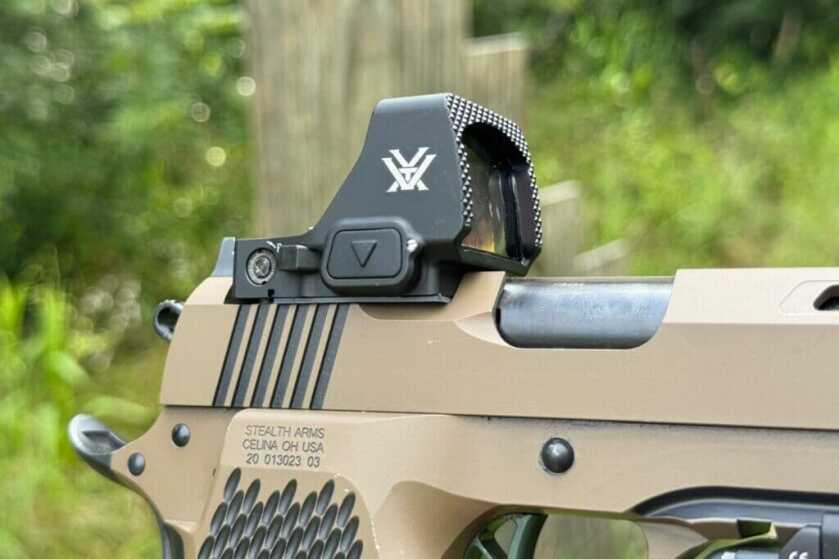

One thing to be aware of is that the Defender-XL’s front lens protrudes past the front of the base just like the Trijicon SRO. Most slide cuts aren’t deep enough to have any issues, but my Stealth Arms Platypus has a very deep slide cut which caused the front of the red dot to hit the frame keeping it from mounting correctly. To address this, I made a 0.040″ shim which raised the red dot just enough to keep it from interfering.
Available on GunsAmerica Now
The dot ended up working loose with this combo, and I think it was partly because the rear pins no longer made contact with the housing. I think a machined riser with the DPP footprint would fix this issue. However, I am still thankful for deep slide cuts as they allow lower iron sights to clear the bases of red dot housings.
Housing On The Defender-XL

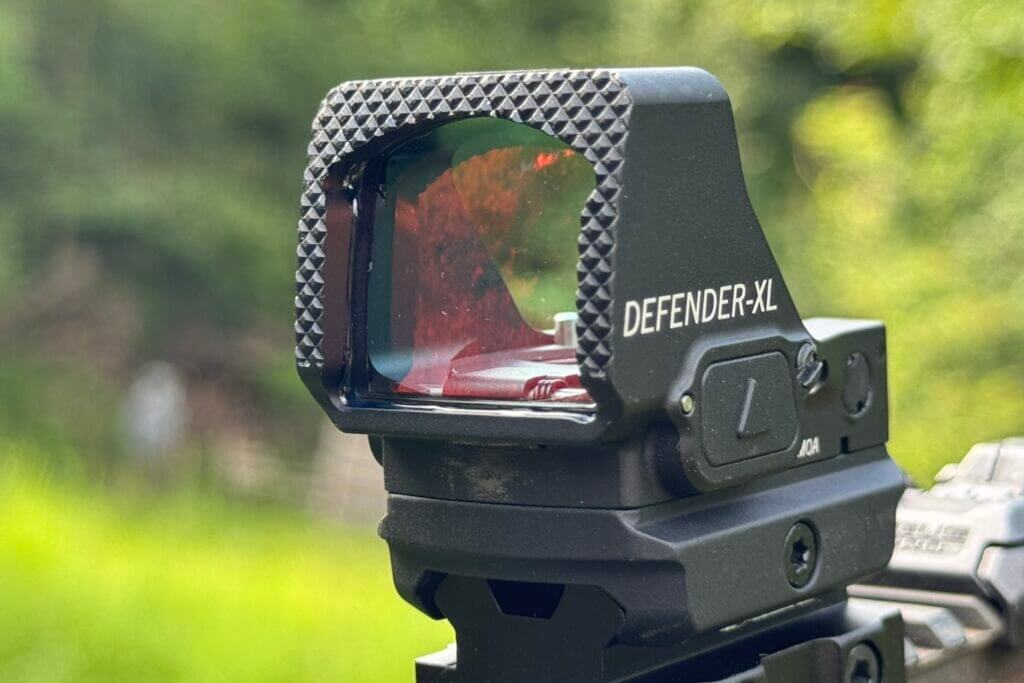

For those familiar with the Vortex’s Defender lineup of red dots, the Defender-XL has many similiarities with a few key differences. Keeping tradition, Vortex continues to utilize its unique Fast-Rack textured front face. The texturing allows for easier one-handed slide manipulations by pushing the optic into objects to rack a pistol slide. Additionally, this protruding front face creates a metal standoff which in turn protects the recessed lens.

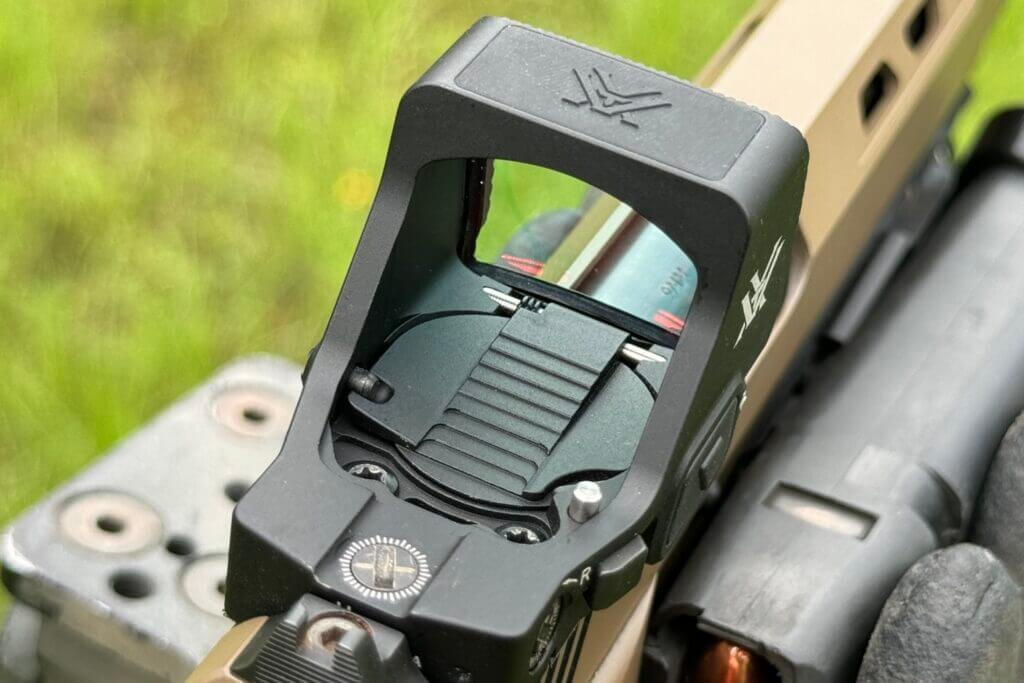

The top of the housing also features a polymer insert which Vortex calls a ShockShield. This helps absorb shock for the optic and is supposed to help protect the glass from cracking when the housing is being used and abused. Not only does this improve reliability, but it also shifts the center of gravity towards the bottom of the housing. This helps reduce muzzle flip on a pistol and reduces the overall weight to only 1.9oz.

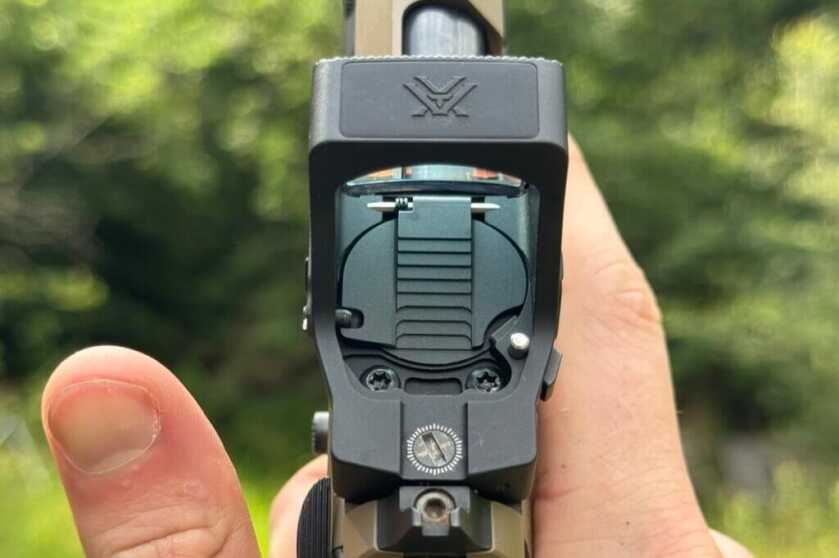

Unlike the Defender-CCW and Defender-ST, the new Defender-XL features an upgraded battery tray. Instead of the older screw-on cap, the Defender-XL has a flip-up hinge, making it much easier to use. For added security, the battery tray includes two fail-safes: a set screw on the left side that locks the tray completely, and a spring-loaded pin with a lever on the right side that must be moved to open the compartment. This double fail-safe design ensures peace of mind while providing easy and convenient access to the battery when needed.
Battery
The Defender-XL is powered by a CR2032 battery and offers an impressive estimated runtime of around 25,000 hours, assuming the dot is set to the 6th level out of its 12 brightness settings. To conserve battery life, it features a factory default auto-shutoff set to activate after 10 minutes of inactivity. This feature can be toggled on or off by holding the up and down buttons for three seconds. When enabled, the auto-shutoff function pairs with motion activation, instantly reactivating the dot with any movement.
For users who have the red dot mounted on a duty or concealed carry pistol, it stays on continuously due to regular motion. Conversely, placing the firearm in a safe or on a nightstand triggers the auto-shutoff, preserving battery life.
Buttons

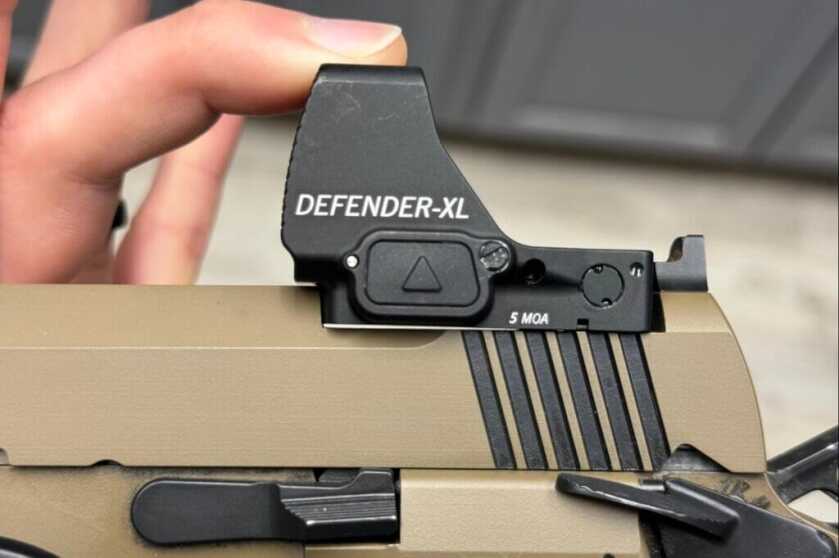

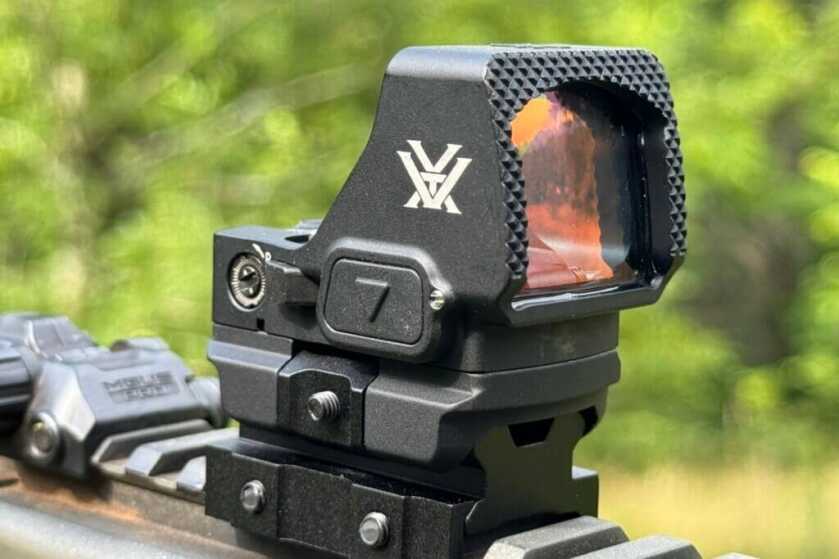

The Defender-XL features brightness adjustment controls on both the left and right sides of the housing. The up arrow increases brightness, while the down arrow decreases it. It offers 12 brightness settings in total, with 10 for daylight conditions and 2 for use with night vision. This red dot sight is exceptionally bright, even surpassing the Trijicon RMR at its highest setting. However, the night vision settings are brighter than ideal at the lowest level.
One issue I’ve noticed is that the up and down arrows protrude slightly from the housing. While this design is similar to the Trijicon RMR, the buttons on the Defender-XL are much easier to press, which has led to accidental brightness adjustments. Simply placing a pistol equipped with the Defender-XL on a table has, on occasion, turned the red dot off entirely.
Turrets On The Defender-XL

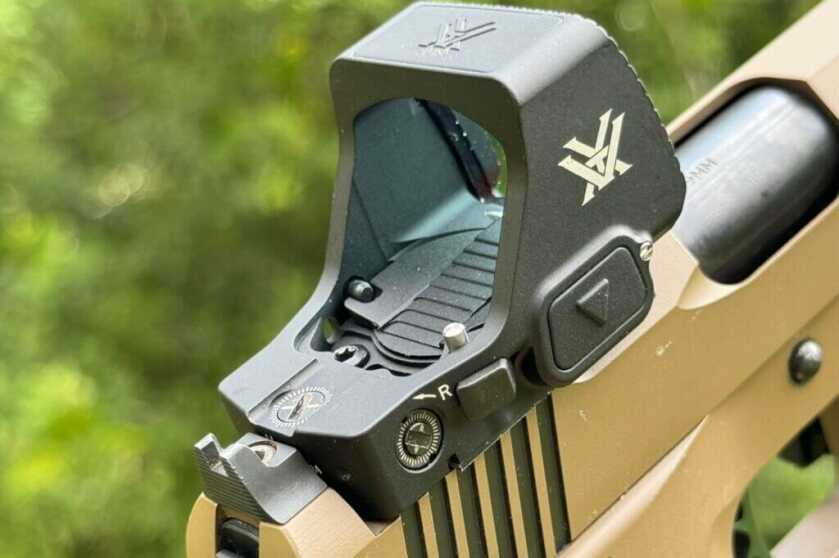

For zero adjustments, the Defender-XL utilizes an elevation turret on the top of the housing and a windage turret on the right side. Adjusting the bullet’s point of impact involves a simple twist of these turrets. If the initial impact is high and to the right, adjust the turrets down and to the left accordingly. Each click on the turrets corresponds to a 1 MOA movement in the bullet’s point of impact, meaning it takes 10 clicks at 10 yards to move the POI one inch. These adjustments produce audible and tactile clicks and offer up to 120 MOA of total adjustment range.
Glass
The Defender-XL offers a substantially larger window compared to the Defender-CCW and the newer Defender-ST. Utilizing the DeltaPoint Pro footprint, it features a wide body and an expansive window. The hard-coated aspherical lens delivers a “distortion-free sight picture.” Although the Defender-XL is clear and free of distortion, there is a slight blue tint on the lens. To demonstrate how it compares to other optics on the market, I created the image below. Please focus on the clarity of the optics rather than their size, as some were positioned closer to the camera than others. The picture is only intended to compare glass clarity.
Parallax
One thing I wanted to test with the Defender-XL is if the dot shifted despite where the user had the dot placed in the window. Some red dots can have a large POI shift, and it looks like this dot is no exception. I mounted this pistol to a tripod and then took pictures with the dot at each corner of the window. I measured a shift of 3″ at 10 yards depending on where the dot was at in the window, or approximately a 30 MOA vertical parallax shift. Horizontally, there was almost no shift, but the vertical shift could prove problematic.
To minimize this effect, users could sight the red dot in the middle of the window, and then if it is on the upper or lower portion of your field of view when shooting you should only have a 15 MOA shift in either direction. When it comes to pistol shooting a maximum of 3″ shift at 10 yards would be barely noticeable to most people. Yet, it is something critical to note. For this reason, I would prefer to run the Vortex Defender-ST despite a slightly smaller window due to it having nearly zero parallax shift. However, for those who want the largest window around, the Defender-XL is for you.
Durability
Vortex provided the Defender-XL red dot prior to its launch, giving me time to test it. Throughout my testing, I encountered no mechanical issues. The Vortex Defender-XL did work loose after using the Fast-Rack front face to rack my pistol against various objects. However, if you have a proper optic plate I don’t think this would be an issue. Also, avoiding purposefully slamming the optic into objects may help even though the rugged housing can take the beating.

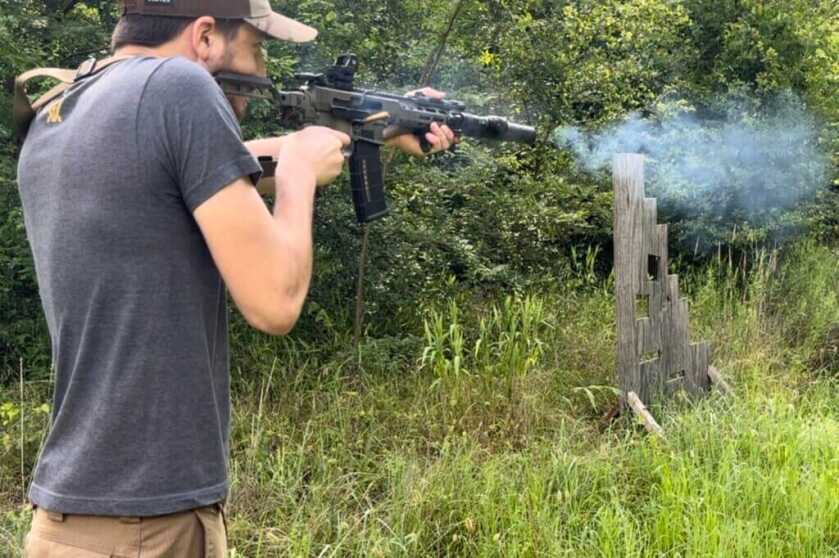

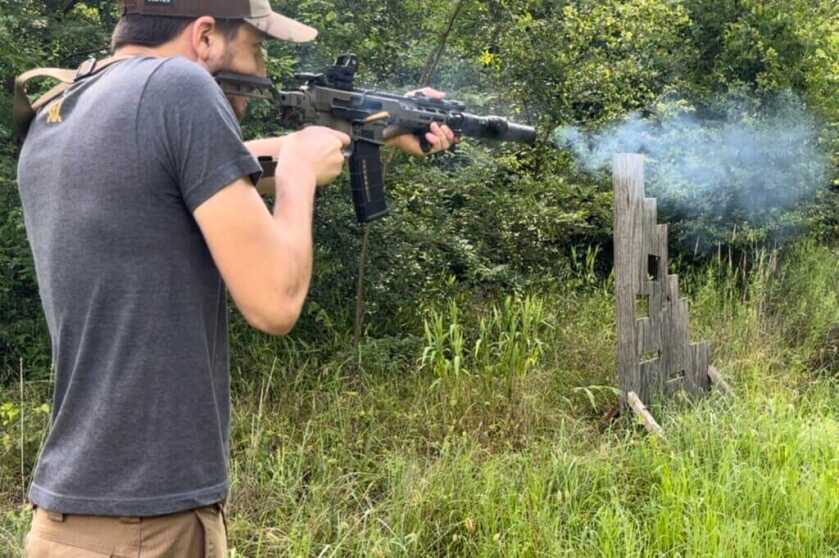

The large sight window proved invaluable when shooting through a VTAC board or from unconventional positions, where smaller dots can be hard to locate. The Defender-XL’s quick target acquisition makes it ideal for fast transitions and competition shooting. Its rugged build also makes it suitable for use on rifles and shotguns.

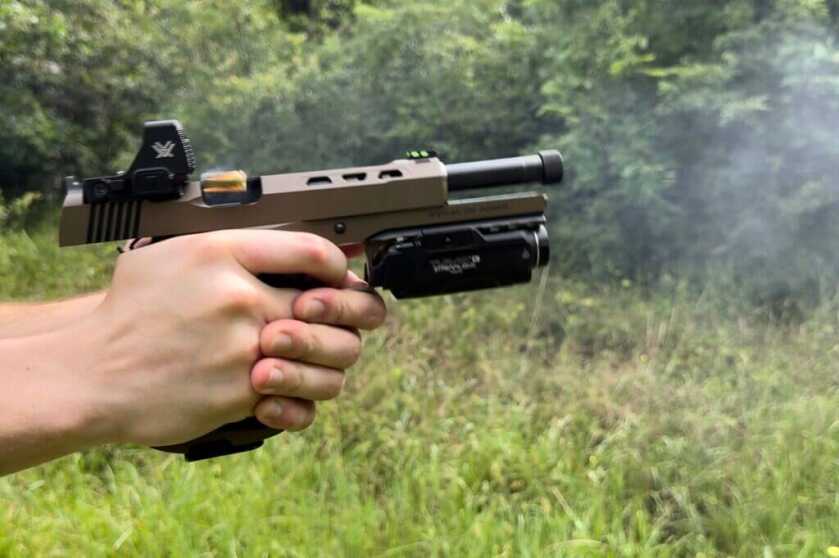

During testing, the advantages of the XL’s large window became clear while running and gunning. Whether shooting on the move, through ports, or from awkward positions, finding the dot was always easy. My transitions were swift in close-quarters scenarios, and I was able to hit steel targets at 100 yards with the Defender-XL mounted on my Stealth Arms Platypus. Additionally, the new hinged battery tray design is a significant improvement, as I have struggled with aligning and screwing in the cap on other Defender sights.
Summary of the Defender-XL
While I noticed some vertical parallax shifts that can be problematic at a distance, the new Vortex Defender-XL is designed for fast-paced, close-quarters environments like competition shooting. Its window is slightly larger than that of the Holosun 507 Comp, providing a better field of view. Priced at an MSRP of $569.99, with an expected street price of around $400, this red dot sight is built tough and designed to last. For added peace of mind, it comes with the Vortex VIP lifetime warranty.
READ MORE: Streamlight TLR-6 HL: Little Light, Big Impact
The Defender-XL also includes a Picatinny mount right out of the box. With features like a top-loading battery, tactile adjustments, and a rugged Fast-Rack front face, it is a strong contender in the competition shooting arena. However, the vertical parallax shift of up to 3 inches at 10 yards may make the Vortex Defender-ST a better overall choice, as it offers zero parallax shift despite its slightly smaller window.
