Leupold’s New BX-4 Range HD Binocular — SHOT Show 2023

Leupold's New BX-4 Range HD Binocular -- SHOT Show 2023
The BX-4 Range HD TBR/W binocular feels great in the hands and is easy on the eyes.

Leupold has stepped into the world of ballistic-rangefinding binoculars with their newly released BX-4 Range HD TBR/W. This binocular is a 10x42mm model that is exceptionally clear with a powerful rangefinding capability that has a maximum reflective range of 2,600 yards.

The TBR/W system provides 25 selectable ballistic profiles that will provide angle-compensated ballistic solutions to within 1/2 MOA out to a distance of 750 yards, with a maximum of 800 yards.

Past this distance, you will not get a ballistic solution and will have to rely on another system, such as a Kestrel. The TBR-W capabilities will also provide a 90-degree 10 MPH wind hold that helps the shooter make a quick, informed wind call.

SEE ALSO: 12 Days of SHOT Giveaway Winners List — You Can Be Next! Sign Up HERE!

Leupold's New BX-4 Range HD Binocular -- SHOT Show 2023

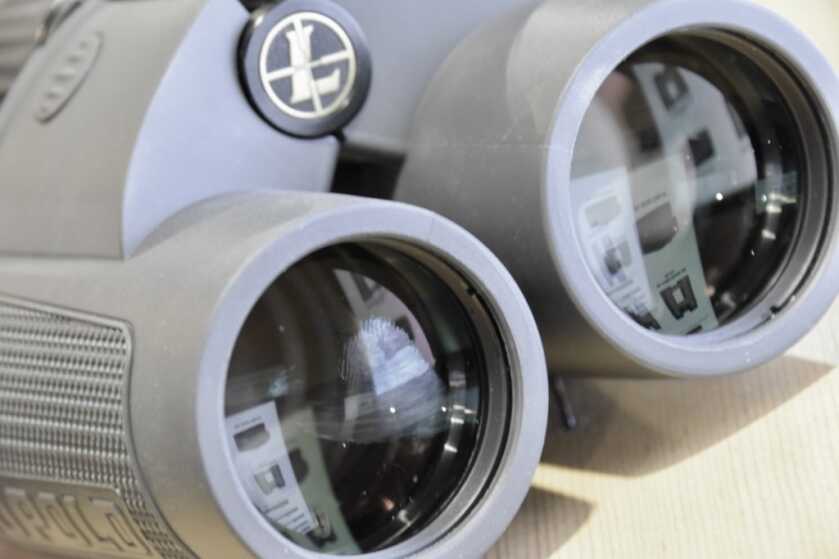

The objective lens of the BX-4 Range HD TBR/W.

Designed for the serious hunter, the BX-4 Range HD TBR/W binocular will reliably range trees to 2,000 yards and deer to 1,100 yards.

Leupold has also considered the wrong-handed and designed the buttons on the top of the rangefinder to be programable as either the power or range button. This creates an ergonomic, user-friendly interface for both left-handed and right-handed users.

Leupold's New BX-4 Range HD Binocular -- SHOT Show 2023

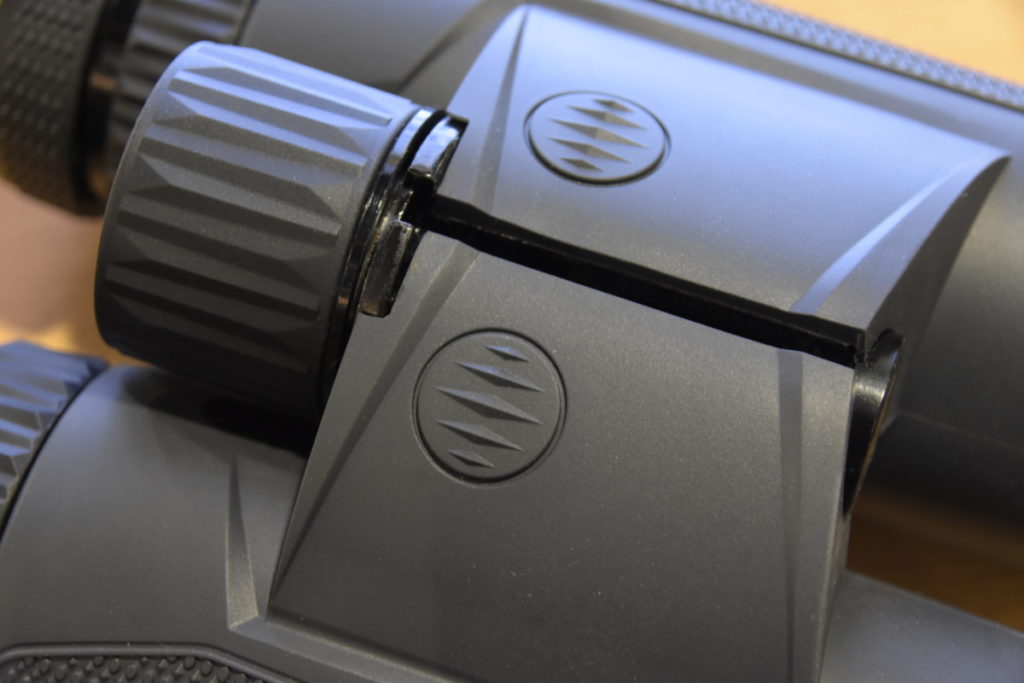

The activation buttons on top are programable as either the power or range buttons. This makes use easy for both right-handed and left-handed users.

This binocular weighs only 39 ounces but can be mounted to a tripod using the 1/4×20 rotatable tripod adapter port.

The BX-4 Range HD also features oversized eyepieces for all-day comfort, a smooth focusing system for fine adjustments, and field-replaceable eyecups that simply twist up and off if they are damaged.

SEE ALSO: Leupold Carbon Fiber Tripods

Not to be forgotten, bow hunters can also benefit from the BX-4 Range HD binocular with the Bow Mode that uses the distance and angle of a measurement for accurate uphill and downhill shots.

You’ll also be able to rest easy in all conditions knowing that these binoculars are waterproof, fog proof, and can withstand temperature swings from -40 to 160 degrees Fahrenheit.

Specifications and Features

  • $1,599.99 MSRP
  • available in March
  • 10x42mm
  • ~80% light transmission
  • 6 degree FOV (~330 ft @ 100 yards)
  • tripod compatible with 1/4×20 mount
  • TBR/W ballistic solutions
  • CR2 battery
  • 5.9 inches long
  • 39 ounces
  • 17mm eye relief
  • -3.5 to +3.5 diopter adjustment
  • 13 foot minimum focus range
  • +/- 1 yard accuracy to 1000 yards
  • 3000 actuation battery life
  • maximum reflective range (yards): 1100 on deer, 1600 on trees, 2600 reflective
  • 12 yard minimum ranging capability
Leupold's New BX-4 Range HD Binocular -- SHOT Show 2023

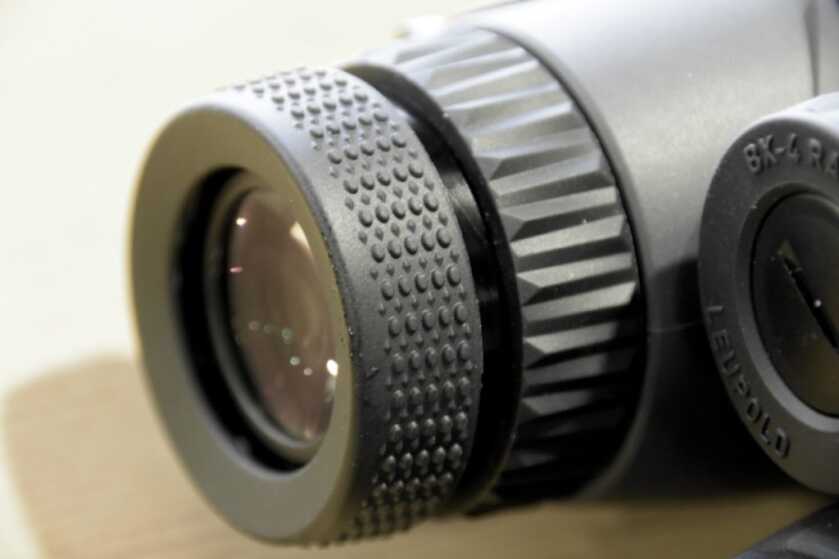

The adjustable eyecups are designed with a wide contact area for comfortable use, as well as with an aggressive texture for all-weather, gloved use.
